Product Description
| Product Name | water tube 220571 |
| Amperage | 130A |
| Suitable for | HPR/HPRXD |
| Used | Heavy Machinery and Construction Equipment
Manufacturing: Cutting of thick steel plate structural parts.
Mining Machinery: Manufacture of wear-resistant and high-strength steel plate components.
Ship building:
Pressure vessels and boilers:
Manufacture of large steel structures:
Any automated production line with extreme requirements for cut hole quality and productivity. |

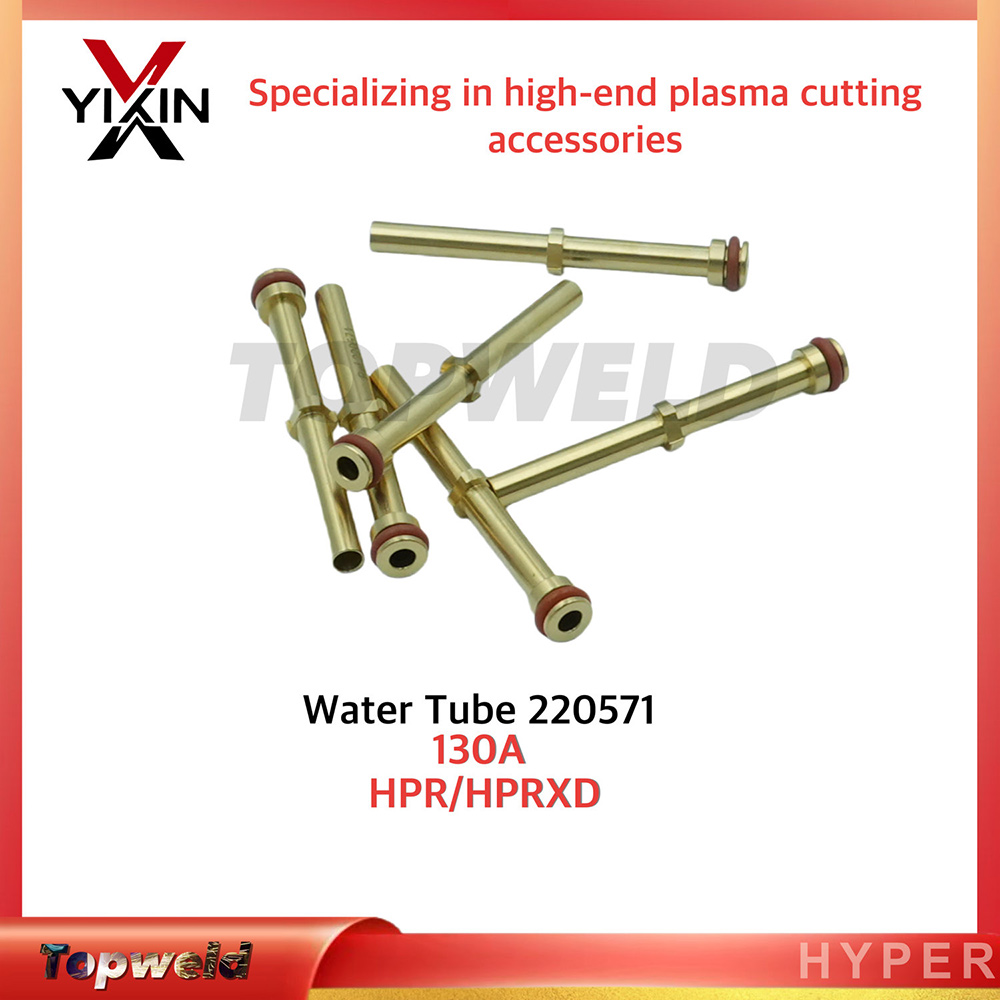

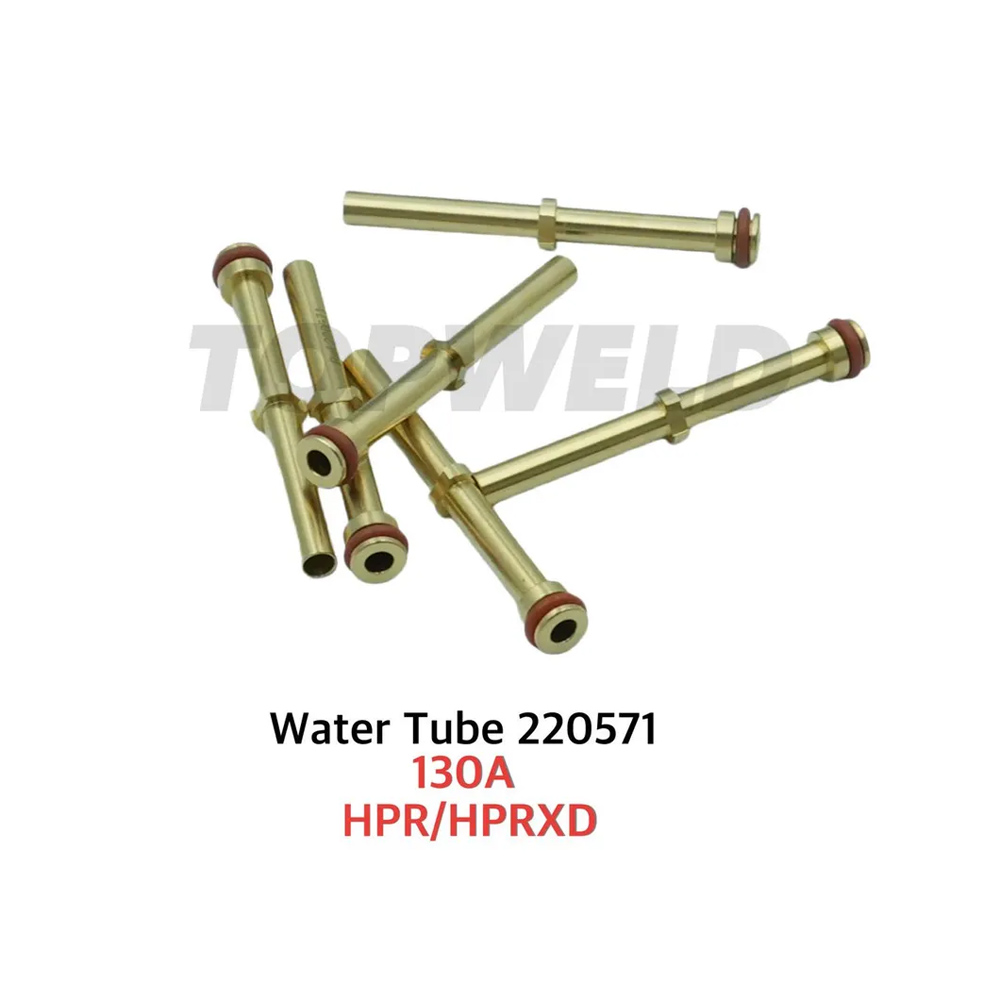

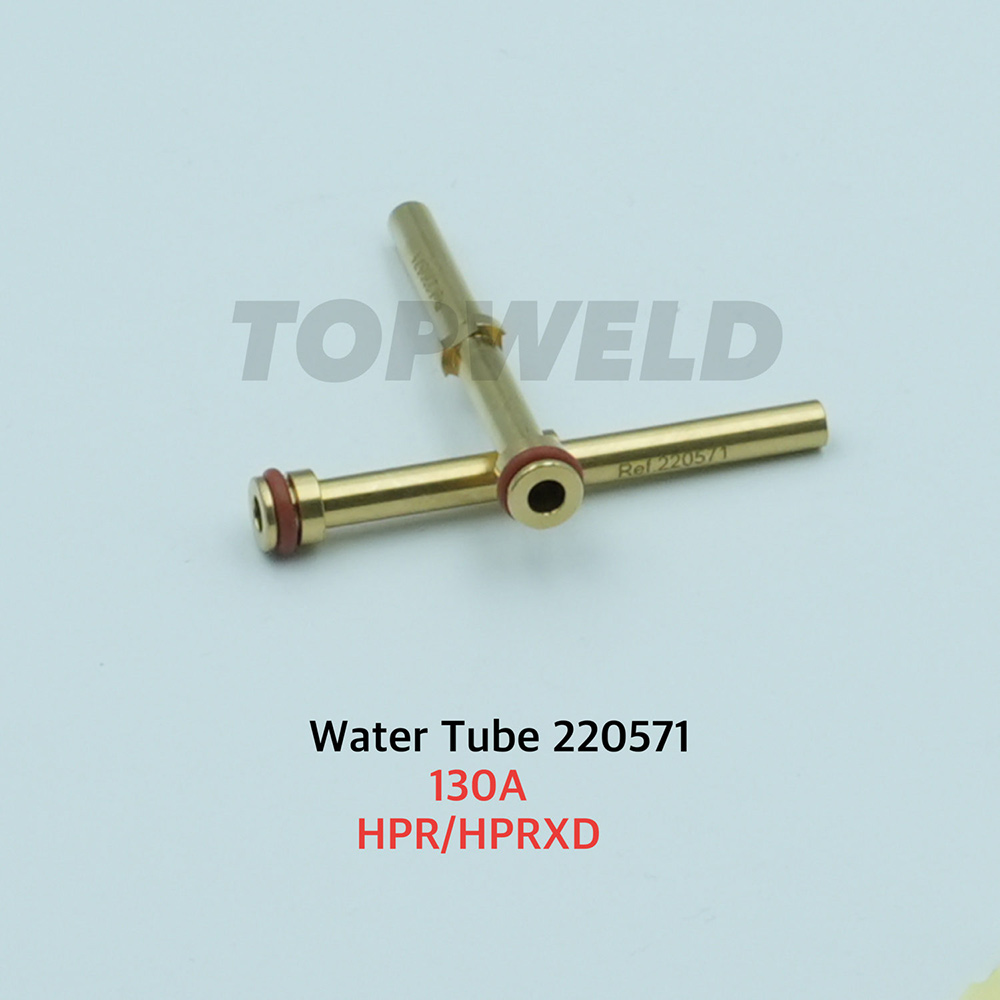

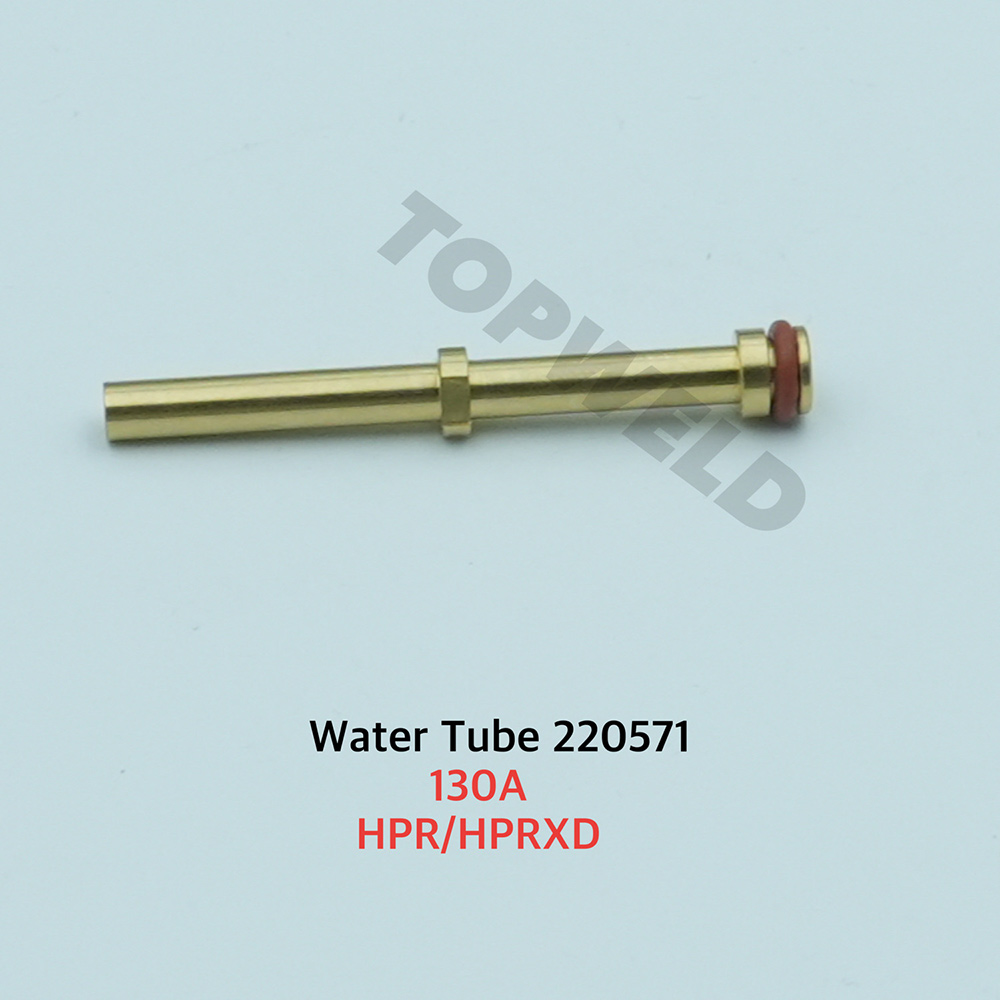

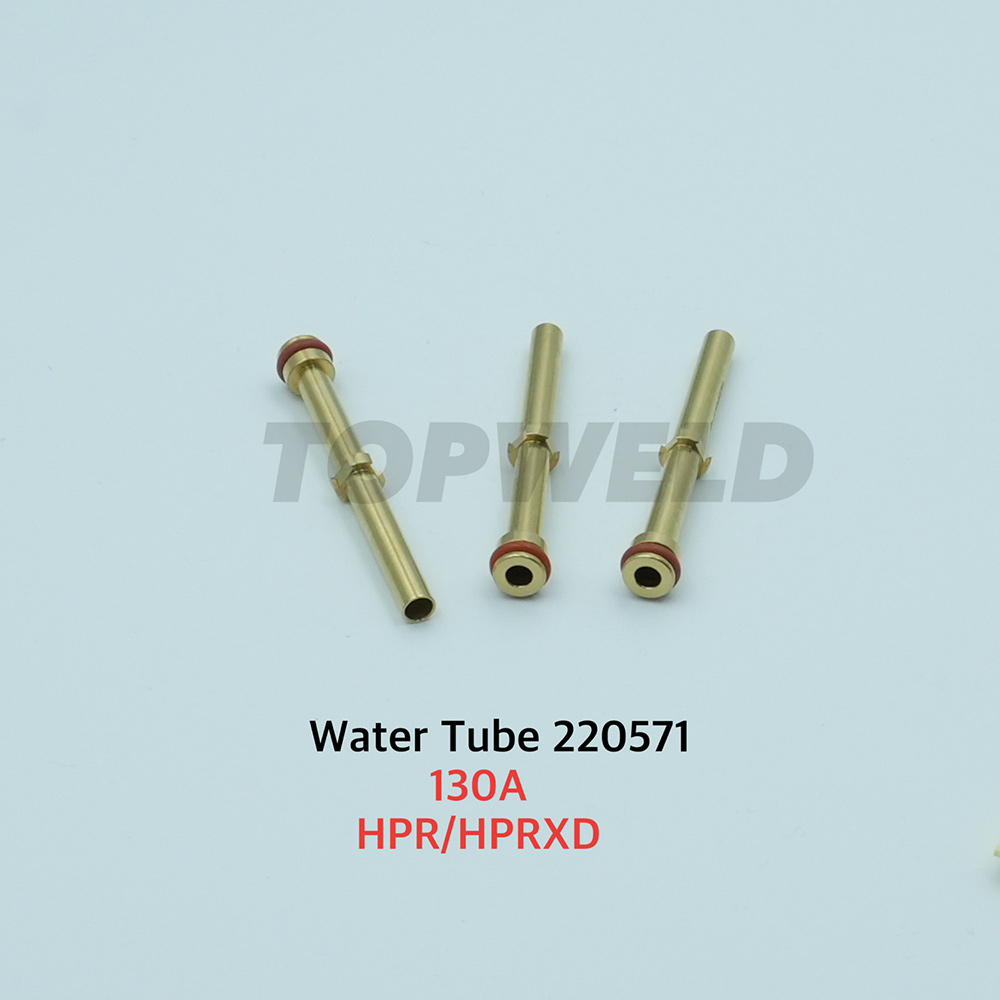

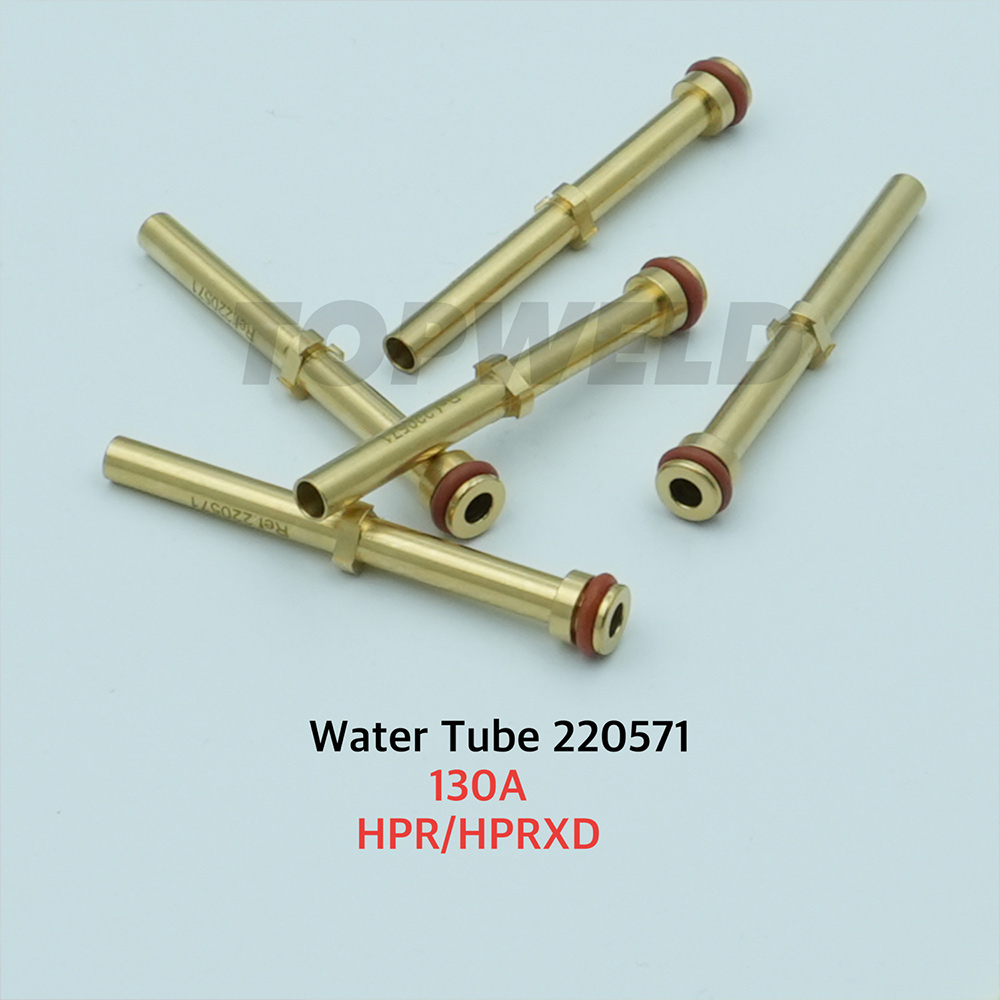

water tube 220571 For HPR/HPRXD
China top-quality factory brand, we focus on high quality plasma accessories , water tube 220571 is use with HPR HPRXD plasma cutting systems. For hand or machine cutting at 400 AMP. our plasma consumables are manufactured in china changzhou , we always put quality as the first,we have large stock to the high quality as OEM,we can't just look at the appearance of the product, if the production technology is not up to standard, even if you use the best materials and machines, you can't achieve the desired result, So give us a chance because we are one of the few manufacturers who focus on the quality of the product and We have our own exclusive manufacturing process to ensure the cutting life and cutting ability of our products.
Features:
Engineered for maximum life
Highest possible standards
Thick hafnium insert
Compatible With:
HPR/HPRXD
- Packaging: Typically sold in packs (1-pack per unit) , also we can offer other package you need.
- Pricing: please contact us,prices vary according to the quantity ordered
- Free Sample if you need we can offer some free samples for you to test
Mild Steel Consumables
| Ampere | Shield cap | Shield | Nozzle retaining cap | Nozzle | Swirl ring | Electrode | Silver electrode | Water tube |
| 30A | 220747(HPRXD) | 220194 | 220754(HPRXD) | 220193 | 220180 | 220192 | | 220340 |
| 220173(HPR) | 220313(HPR) |
| 50A | 220747(HPRXD) | 220555 | 220754(HPRXD) | 220554 | 220553 | 220552 | | 220340 |
| 220173(HPR) | 220313(HPR) |
| 80A | 220747(HPRXD) | 220189 | 220756(HPRXD) | 220188 | 220179 | 220187 | 420566 | 220340 |
| 220173(HPR) | 220176(HPR) |
| 130A | 220747(HPRXD) | 220183 | 220756(HPRXD) | 220182 | 220179 | 220181 | 220665 | 220340 |
| 220173(HPR) | 220176(HPR) |
| 200A | 220637(HPRXD) | 220761(HPRXD) | 220757(HPRXD) | 220354 | 220353 | 220352 | 220666 | 220340 |
| 220398(HPR) | 220356(HPR) | 220355(HPR) |
| 260A | 220637(HPRXD) | 220764(HPRXD) | 220760(HPRXD) | 220439 | 220436 | 220435 | 220668 | 220340 |
| 220398(HPR) | 220440(HPR) | 220433(HPR) |
| 400A | 220637 | 220636 | 220635 | 220632 | 220631 | 220629 | 420530 | 220571 |
| *80A bevel | 220637 | 220742 | 220845 | 220806 | 220179 | 220802. | | 220700. |
| 130A bevel | 220637(HPRXD) | 220742(HPRXD) | 220740(HPRXD) | 220646 | 220179 | 220649 | | 220700. |
| 220398(HPR) | 220645 | 220603(HPR). |
| 200A bevel | 220637 | 220658 | 220845. | 220659 | 220353 | 220662. | | 220700. |
| 260A bevel | 220637(HPRXD) | 220741(HPRXD) | 220740(HPRXD) | 220542 | 220436 | 220541 | | 220571 |
| 220398(HPR) | 220545(HPR) | 220603(HPR). |
| **260A bevel | 220637 | 220897 | 220896 | 220898 | 220436 | 220899 | | 220571 |
| 400A bevel | 220637 | 220636 | 220635 | 220632 | 220631 | 220629 | | 220571 |
Stainless Steel Consumables
| Ampere | Shield cap | Shield | Nozzle retaining cap | Nozzle | Swirl ring | Electrode | Water tube |
| 45A | 220747(HPRXD). | 220202 | 220755(HPRXD) | 220201 | 220180 | 220308 | 220340 |
| 220173(HPR) | 220304(HPR) |
| 60 HDi | 220747. | 220815 | 220814 | 220847 | 220180 | 220339 | 220340 |
| 80A | 220747(HPRXD). | 220338 | 220755(HPRXD) | 220337 | 220179 | 220339 | 220340 |
| 220173(HPR) | 220304(HPR) |
| 130A | 220747(HPRXD | 220198 | 220755(H35)(HPRXD) | 220197 | 220179. | 220307 | 220340 |
| 220756(N2)(HPRXD) |
| 220173(HPR) | | 220304(H35)(HPRXD) |
| 220176(N2)(HPR) |
| 200A | 220637(HPRXD) | 220762(HPRXD) | 220758(HPRXD) | 220343 | 220342 | 220307 | 220340 |
| 220398(HPR) | 220345(HPR) | 220344(HPR) |
| 260A | 220637(HPRXD) | 220763(HPRXD) | 220758(HPRXD) | 220406 | 220405 | 220307 | 220340 |
| 220398(HPR) | 220407(HPR) | 220344(HPR) |
| 400A | 220637 | 220707 | 220712 | 220708 | 220405 | 220709 | 220571 |
| 600A | 220637 | 220707 | 220635(H35) | 220859 | 220353(H35). | 220709 | 220571 |
| 220885(N2) | 220405(N2) |
| 800A≤100mm | 220637 | 220886 | 220885 | 220884 | 220353. | 220882 | 220881 |
| 800A≥100mm | 220637 | 220886 | 220712 | 220884 | 220350 | 220882 | 220881 |
| 130A bevel | 220637(HPRXD) | 220738(HPRXD) | 220739(HPRXD) | 220656 | 220179. | 220606 | 220571 |
| 220398(HPR) | 220609(HPR) | 220656(H35)(HPR) |
| 220608(N2)(HPR) |
| 260A bevel | 220637(HPRXD) | 220738(HPRXD) | 220739(HPRXD) | 220607 | 220405 | 220606 | 220571 |
| 220398(HPR) | 220609(HPR) | 220608(HPR) |
| 400A bevel | 220637 | 220707 | 220712 | 220708 | 220405 | 220709 | 220571 |
| 600A bevel | 220637 | 220707 | 220635(H35) | 220859 | 220353(H35). | 220709 | 220571 |
| 220885(N2) | 220405(N2) |
| 800A bevel≤100mm | 220637 | 220886 | 220885 | 220884 | 220353 | 220882 | 220881 |
| 800A bevel≥100mm | 220637 | 220886 | 220712 | 220884 | 220350 | 220882 | 220881 |
CLICK HERE : We offer a wide selection of Most high-end cutting systems ensuring you find the right plasma torch consumables you needs,please contact us any time !
Exclusive Technology
CLICK HERE : More exclusive craftsmanship is inconvenient to show, if you are interested in please contact us!
Production Process
Company Profile
We are a manufacturing company specializing in high-quality plasma cutting and welding consumables, with 15 years of worldwide experience with plasma cutting solutions. we offers a complete range of replacement parts for most of the Cutting Systems, always providing cost-effective solutions that deliver performance equal to original OEM standard.
From the very beginning, we recognized that we have to put the quality as the first.We continuously strive to improve our technique to produce even better items than the original ones!
Our Exhibition
Why Choose Us
High-Quality Materials: We only use high quality materials to produce our products, always insisting on quality first and customer satisfaction first! 90% customer repurchase rate!
Precision Engineering: Our consumables are meticulously engineered using advanced manufacturing processes and CNC machining technology. This precision engineering guarantees tight tolerances, accurate dimensions, and optimal fit, resulting in clean and precise cuts every time.
Extended Service Life: We understand the importance of longevity in plasma cutting consumables. By utilizing superior materials and our exclusive production process , our products offer extended service life, reducing downtime for our customers and increasing overall productivity.
Enhanced Cutting Performance: Our consumables are designed to optimize cutting performance. With carefully engineered geometries, improved heat resistance, and efficient cooling mechanisms, our products deliver exceptional cutting speed, quality, and accuracy, ensuring superior results for our customers.
Support the return: If there are any quality issues, we offer a return and exchange service along with corresponding compensation. We always prioritize product quality and the interests of our customers.
24-Hour After-sales Service: We take quality very seriously! Whatever your problem, we will quickly assess the situation and quickly investigate to determine the cause and provide a quick solution!
Packaging & Shipping
FAQ
Q1: Can I have a sample for testing?
A: Yes, we can support some free samples . if you need a large samples will be charged reasonably according to the negotiation between us.
Q2: Can I add my logo on the boxes/cartons?
A: Yes, we have a R&D capability and professional & efficient team, OEM and ODM are available from us.
Q3: What are the benefits of being a distributor?
A: Special discount Marketing protection.
Q4: How can you control the quality of products?
A: Yes, we have engineers ready to assist customers with technical support problems, any issues that may arise during the quoting or installation process, as well as aftermarket support.
Q5: Can I send samples and let the goods to be customized?
A: Of course, we can make the parts you need according to the sample 1:1 reduction.
Q6: CAN I have a visit to your factory before the order?
A: Sure, welcome your visit to our factory.
